SUPERIOR PERFORMANCE

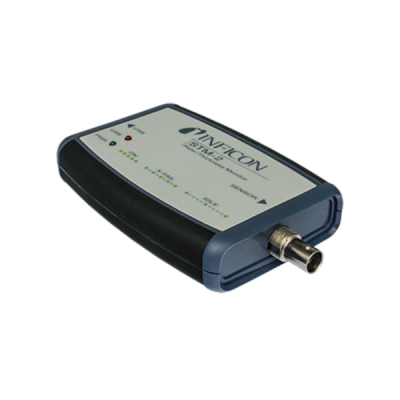

STM-2 is the most accurate USB powered thin film monitor in the industry. Ten measurements are taken per second while achieving a resolution of 0.037 Å per measurement (density of 1).

EASY AND FLEXIBLE INSTALLATION

STM-2 comes with everything you need to connect your QCM sensor/feedthrough to a Windows® PC. Simply connect the included BNC cable from the feedthrough to STM-2, then connect the STM-2 to your PC using a standard mini USB cable (included). No external oscillator or power supply is required.

STM-2 features an internal oscillator that allows for simple and cost effective installation when STM-2 is located within 1 m (40 in.) of the quartz crystal. A standard INFICON® oscillator kit can be used for applications where STM-2 must be located farther away from the feedthrough.

STM-2 SOFTWARE

STM-2 includes LabVIEW® software, capable of simple operation and data logging. Windows software is also included for operation and data logging of up to eight STM-2s simultaneously (each STM-2 requires a powered USB port).

Please Note: The SMDP Server needs to be installed for the STM-2 Windows Application Software or the STM-2 LabVIEW Application Software to function properly.

FEATURES

  • Low cost instrument
  • USB connection
  • Internal oscillator
  • High accuracy at 10 measurements per second
  • Compatible with an external oscillator
  • Includes software
