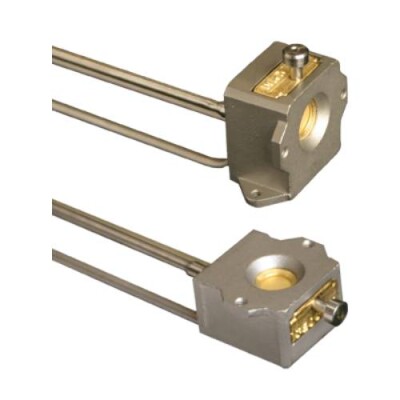

Cool Drawer Single Sensor

The Cool Drawer Single Sensors allow crystal installation into the sensor from the side, convenient for systems with insufficient room for front load crystal installation. The Cool Drawer Single Sensor employs the Cool Drawer Crystal Holder which is thermally shielded by the water-cooled housing insuring excellent crystal performance.

Use Part Finder to select sensor configuration.

FEATURES

  • No internal cables
  • Cool Drawer crystal holder
  • Easy installation
  • Bakeable if ordered with welded CF40 flange
  • Available with: CF40 feedthrough and 2.54 cm (1") bolt feedthrough
  • Adjustable length if ordered with compression fittings
  • No brazing required if ordered with compression fittings
  • Sensor/feedthrough combination available welded to customer specified lengths
Your Part Number: CDS-
X X X X X

NOTE 1:
Orders for a WELDED sensor/
feedthrough combination are
measured from centre of the crystal
to the vacuum side (sealing surface)
of the feedthrough. Once a welded
sensor order is confirmed, it can not be
cancelled.

NOTE 2:
Feedthrough configuration varies
depending on options selected (type of
feedthrough and connection). Example:
CDS-A1F47-XX and -B1F47-XX use a
two-piece hybrid feedthrough design
due to dimensional limits of a standard
CF40.

NOTE 3:
For sensors ordered without a weld
connection (option “8”), tubes are
made to a length of approximately
76.2 cm (30 in.) for standard Cool
Drawer Sensors and approximately 66
cm (26 in.) for Right Angle Cool Drawer
Sensors.

NOTE 4:
Cool Drawer Sensors are not available
without a feedthrough and must be
either welded or connected with
Ultra-Torr fittings.

1. Type of sensor

Includes user manual, crystal sold separately

2. Shutter assembly
3. Length of sensor

(see notes 1 and 3)

4. Feedthrough

(see notes 2 and 4)

5. Feedthrough connection

(see notes 2, 3, and 4)

CDS--ZZZZZ
