Designed Specifically for ALD

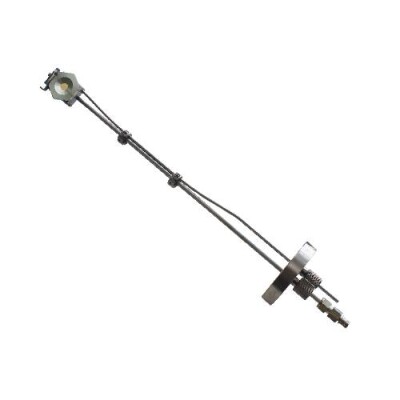

A unique feature of the INFICON ALD Sensor is a gas tube used to purge the back of the crystal and sensor cavity with an inert gas, typically nitrogen. This keeps reactive chamber gases from entering the sensor head and keeps the back of the crystal and electrical contacts free of deposition material. This technique allows for in situ measurement in systems where a standard QCM is not suitable.

Feedthrough and Feedthrough Connection

INFICON ALD Sensors are available in custom welded lengths or with compression fittings for adjustable length without the need for brazing or welding. All configurations use a 2 ¾ in. (CF40) ConFlat® flange feedthrough.

High Temperature Crystals for More Accurate Measurements

The INFICON ALD Sensor can achieve the best measurement accuracy and lower frequency noise in high temperature applications when used with INFICON’s new high temperature quartz crystals. These high temperature crystals are optimized for 120, 240, and 285°C applications, so you always have the right crystal for your process. Crystals optimized for other temperatures may be available.

FEATURES

  • Operating temperature up to 450°C
  • Gas purge line keeps back of crystal free of depsotion material
  • Welded Conflat flange (CF40) option
  • O-ring compression fitting option
  • High temperature crystals available

ADVANTAGES

  • Compatible with most ALD process temperatures
  • Significantly reduces maintenance
  • Maximizes system uptime
  • Maximizes measurement accuracy
  • Stable readings with low noise at high process temperatures

TYPICAL APPLICATIONS

  • Atomic Layer Deposition (ALD)
Your Part Number: 750-713-G4-
X

NOTE 1:
ALD Sensor orders are measured from centre of the crystal to the vacuum side (sealing surface) of the feedthrough.

Once a welded sensor order is confirmed, it cannot be cancelled.

1. Welded ALD Sensor Length

750-713-G4--Z

Nothing found

Enquire
Your Part Number: 750-717-
X

NOTE 1:
ALD Sensor orders are measured from centre of the crystal to the vacuum side (sealing surface) of the feedthrough.

Once a welded sensor order is confirmed, it cannot be cancelled.

1. Adjustable Length ALD Sensors

750-717--Z

Nothing found

Enquire
