Home Viewports Fused Silica

Ceramtec

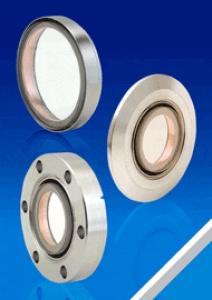

Fused Silica

Specifications
Housing: 304 Stainless steel
Optic: UV Grade Fused Silica
Magnetic materials: See table
Transmission Range (80% Min): 0.25 to 2 Microns
Temperature Range: See data sheet
Pressure @ 20ÂșC: 1.13 View Dia.: 115 PSIG (7.9 Bar)
1.37 View Dia.: 35 PSIG (2.4 Bar)
2.37 View Dia.: 35 PSIG (2.4 Bar)
3.81 View Dia.: 25 PSIG (1.7 Bar)
Leak Rate: <1x10-10 atm-cc/sec (He)
PDF Downloads
Data sheet

11466-01-CF VIEWPORT FUSED SILICA 1.13 (28.7) NW35CF No
0 in stock
$448.80
Enquire
11466-02-CF VIEWPORT FUSED SILICA 2.37 (60.2) NW63CF No
0 in stock
$979.44
Enquire
11466-03-CF VIEWPORT FUSED SILICA 3.81 (96.8) NW100CF No
0 in stock
$1,191.96
Enquire
11466-09-W VIEWPORT FUSED SILICA 1.13 (28.7) Weld No
0 in stock
$310.20
Enquire
11466-10-W VIEWPORT FUSED SILICA 2.37 (60.2) Weld No
0 in stock
$802.56
Enquire
11466-11-W VIEWPORT FUSED SILICA 3.81 (96.8) Weld No
0 in stock
$1,036.20
Enquire
17109-01-KF VIEWPORT FUSED SILICA 1.13 (28.7) NW50KF No
0 in stock
$398.64
Enquire
4900-01-CF VIEWPORT FUSED SILICA 1.37 (35) NW35CF No
0 in stock
$687.72
Enquire
4900-21-CF VIEWPORT FUSED SILICA 1.37 (35) NW35CF Yes
0 in stock
$706.20
Enquire
4901-01-W VIEWPORT FUSED SILICA 1.37 (35) Weld No
0 in stock
$575.52
Enquire
9600-01-W VIEWPORT FUSED SILICA 1.37 (35) Weld Yes
0 in stock
$644.16
Enquire
