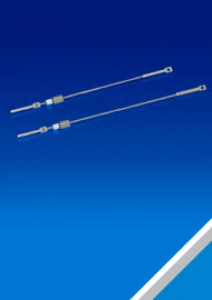

Spade Type 1 or 2 Pairs
Specifications
Shell:
304 Stainless steel
Thermocouple materials:
Chromel, Alumel, Tungsten-Rhenium
Insulation:
Alumina ceramic
Magnetic materials:
No
Temperature Range:
-269º C to 450º C
Pressure @ 20ºC:
3500 PSIG (241 Bar), ISO KF 0 PSIG
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 08151-01 | THERMOCOUPLE SPADE TYPE | K | Chromel/Alumel | Air Side Plug | Yes |
0 in stock
$31.68
|
Enquire | ||
| 08151-04 | THERMOCOUPLE SPADE TYPE | C | Tungsten-Rhenium | Air Side Plug | Yes |
0 in stock
$31.68
|
Enquire | ||
| 08151-07 | THERMOCOUPLE SPADE TYPE | C | Tungsten-Rhenium | Air Side Plug | Yes |
0 in stock
$63.36
|
Enquire | ||
| 08151-09 | THERMOCOUPLE SPADE TYPE | K | Chromel/Alumel | Air Side Plug | Yes |
0 in stock
$60.72
|
Enquire | ||
| 10583-01-CF | THERMOCOUPLE SPADE TYPE | K | Chromel/Alumel | NW35CF | 1 | Yes |
0 in stock
$253.44
|
Enquire | |
| 10583-03-CF | THERMOCOUPLE SPADE TYPE | C | Tungsten-Rhenium | NW35CF | 1 | Yes |
0 in stock
$316.80
|
Enquire | |
| 13563-01-KF | THERMOCOUPLE SPADE TYPE | K | Chromel/Alumel | NW16KF | 1 | Yes |
0 in stock
$212.52
|
Enquire | |
| 13563-04-KF | THERMOCOUPLE SPADE TYPE | C | Tungsten-Rhenium | NW16KF | 1 | Yes |
0 in stock
$229.68
|
Enquire | |
| 18003-01-KF | THERMOCOUPLE SPADE TYPE | K | Chromel/Alumel | NW16KF | 2 | Yes |
0 in stock
$312.84
|
Enquire | |
| 18003-03-KF | THERMOCOUPLE SPADE TYPE | C | Tungsten-Rhenium | NW16KF | 2 | Yes |
0 in stock
$398.64
|
Enquire | |
| 18085-02-W | THERMOCOUPLE SPADE TYPE | Chromel | Weld | No |
0 in stock
$91.08
|
Enquire | |||
| 18085-06-W | THERMOCOUPLE SPADE TYPE | Alumel | Weld | Yes |
0 in stock
$87.12
|
Enquire | |||
| 18085-08-W | THERMOCOUPLE SPADE TYPE | Chromel | Weld | No |
0 in stock
$87.12
|
Enquire | |||
| 18085-12-W | THERMOCOUPLE SPADE TYPE | Alumel | Weld | Yes |
0 in stock
$76.56
|
Enquire | |||
| 8117-01-W | THERMOCOUPLE SPADE TYPE | K | Chromel/Alumel | Weld | 1 | Yes |
8 in stock
$165.00
|
||
| 8117-04-W | THERMOCOUPLE SPADE TYPE | C | Tungsten-Rhenium | Weld | 1 | Yes |
0 in stock
$175.56
|
Enquire | |
| 8118-01-CF | THERMOCOUPLE SPADE TYPE | K | Chromel/Alumel | NW16CF | 1 | Yes |
0 in stock
$176.88
|
Enquire | |
| 8118-04-CF | THERMOCOUPLE SPADE TYPE | C | Tungsten-Rhenium | NW16CF | 1 | Yes |
3 in stock
$224.40
|
||
| 8232-01-CF | THERMOCOUPLE SPADE TYPE | K | Chromel/Alumel | NW16CF | 2 | Yes |
0 in stock
$300.96
|
Enquire | |
| 8232-04-CF | THERMOCOUPLE SPADE TYPE | C | Tungsten-Rhenium | NW16CF | 2 | Yes |
0 in stock
$261.36
|
Enquire | |
| 8233-01-W | THERMOCOUPLE SPADE TYPE | K | Chromel/Alumel | Weld | 2 | Yes |
0 in stock
$248.16
|
Enquire | |
| 8233-04-W | THERMOCOUPLE SPADE TYPE | C | Tungsten-Rhenium | Weld | 2 | Yes |
0 in stock
$328.68
|
Enquire | |
| 8593-01-CF | THERMOCOUPLE SPADE TYPE | K | Chromel/Alumel | NW35CF | 2 | Yes |
0 in stock
$344.52
|
Enquire | |
| 8593-04-CF | THERMOCOUPLE SPADE TYPE | C | Tungsten-Rhenium | NW35CF | 2 | Yes |
0 in stock
$477.84
|
Enquire |
