Ceramtec

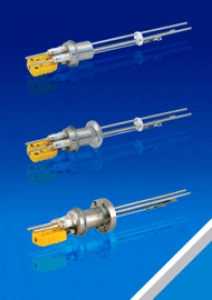

Spade & Power
Specifications
Shell:
304 Stainless steel
Thermocouple materials:
Chromel, Alumel, Tungsten-Rhenium
Pins:
Nickel or Copper
Insulation:
Alumina ceramic
Magnetic materials:
Yes
Voltage Rating:
5kV DC
Current Rating:
See table
Temperature Range:
-269º C to 450º C
Pressure:
500 PSIG (34 Bar), ISO KF 0 PSIG
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 0572-01-W | THERMOCOUPLE SPADE & POWER | C | Tungsten-Rhenium | Weld | 55 | Copper | Yes |
0 in stock
$298.32
|
Enquire | |
| 0572-02-W | THERMOCOUPLE SPADE & POWER | C | Tungsten-Rhenium | Weld | 16.5 | Nickel | Yes |
0 in stock
$310.20
|
Enquire | |
| 10586-01-CF | THERMOCOUPLE SPADE & POWER | K | Chromel/Alumel | NW35CF | 55 | Copper | Yes |
0 in stock
$432.96
|
Enquire | |
| 10586-02-CF | THERMOCOUPLE SPADE & POWER | C | Tungsten-Rhenium | NW35CF | 55 | Copper | Yes |
0 in stock
$414.48
|
Enquire | |
| 10586-06-CF | THERMOCOUPLE SPADE & POWER | K | Chromel/Alumel | NW35CF | 16.5 | Nickel | Yes |
0 in stock
$414.48
|
Enquire | |
| 10586-08-CF | THERMOCOUPLE SPADE & POWER | C | Tungsten-Rhenium | NW35CF | 16.5 | Nickel | Yes |
0 in stock
$414.48
|
Enquire | |
| 18007-01-KF | THERMOCOUPLE SPADE & POWER | K | Chromel/Alumel | NW16KF | 16.5 | Nickel | Yes |
0 in stock
$347.16
|
Enquire | |
| 18007-02-KF | THERMOCOUPLE SPADE & POWER | K | Chromel/Alumel | NW16KF | 55 | Copper | Yes |
0 in stock
$347.16
|
Enquire | |
| 18007-05-KF | THERMOCOUPLE SPADE & POWER | C | Tungsten-Rhenium | NW16KF | 16.5 | Nickel | Yes |
0 in stock
$347.16
|
Enquire | |
| 18007-06-KF | THERMOCOUPLE SPADE & POWER | C | Tungsten-Rhenium | NW16KF | 55 | Copper | Yes |
0 in stock
$347.16
|
Enquire | |
| 3181-01-W | THERMOCOUPLE SPADE & POWER | K | Chromel/Alumel | Weld | 55 | Copper | Yes |
0 in stock
$286.44
|
Enquire | |
| 3181-02-W | THERMOCOUPLE SPADE & POWER | K | Chromel/Alumel | Weld | 16.5 | Nickel | Yes |
0 in stock
$298.32
|
Enquire | |
| 8878-01-CF | THERMOCOUPLE SPADE & POWER | K | Chromel/Alumel | NW16CF | 55 | Copper | Yes |
8 in stock
$332.64
|
||
| 8878-02-CF | THERMOCOUPLE SPADE & POWER | C | Tungsten-Rhenium | NW16CF | 55 | Copper | Yes |
0 in stock
$332.64
|
Enquire | |
| 8878-06-CF | THERMOCOUPLE SPADE & POWER | C | Tungsten-Rhenium | NW16CF | 16.5 | Nickel | Yes |
0 in stock
$347.16
|
Enquire | |
| 8878-07-CF | THERMOCOUPLE SPADE & POWER | K | Chromel/Alumel | NW16CF | 16.5 | Nickel | Yes |
0 in stock
$332.64
|
Enquire |
