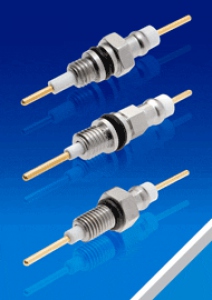

Tec-Seal

Specifications
Body: 304 Stainless steel
O-ring: Viton®
Pin: See table
Insulation: Glass-ceramic & Alumina ceramic
Magnetic materials: Yes
Voltage Rating: See table
Current Rating: See table
Temperature Range: -269º C to 250º C
Pressure @ 20ºC: 25,000 PSIG ( 1724 Bar)
Leak Rate: <1x10-10 atm-cc/sec (He)
PDF Downloads
Data sheet

50015-01-A Tec-Seal® Tec-1 1.5kV 7.5 3/8" 1/4-28. 52 Nickel Iron (Gold Plated) Yes
0 in stock
$257.40
Enquire
50054-01-A Tec-Seal® Tec-4 1.5kV 10 1/4" 10-32. Cold Rolled Steel (Gold Plated) Yes
in stock
Enquire
50065-01-A Tec-Seal® Tec-5 1.5kV 10 1/4" 10-32. Cold Rolled Steel (Gold Plated) Yes
0 in stock
$204.60
Enquire
