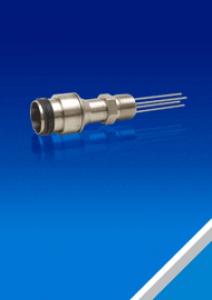

NPT Multipin & Coaxial Connector
Specifications - Multipin Connector
NPT Fitting:
316 Stainless steel
Conductor:
Alumel
Insulation:
Alumina ceramic
Magnetic materials:
Yes
Voltage Rating:
700V DC
Current Rating:
7 Amps per pin
Temperature Range:
-269º C to 450º C
Pressure @ 20ºC:
4 Pin: 600 (41 Bar)
6 Pin: 550 (38 Bar)
10 Pin: 500 (34 Bar)
Leak Rate:
<1x10-10 atm-cc/sec (He)
Specifications - Coaxial Connector
NPT Fitting:
316 Stainless steel
Conductor:
BNC: 304 Stainless steel
MHV: 304 Stainless steel
SHV: Nickel
Insulation:
Alumina ceramic
Magnetic materials:
BNC: No
MHV: No
SHV: Yes
Voltage Rating:
See table
Current Rating:
See table
Temperature Range:
-269º C to 450º C
Pressure @ 20ºC:
See data sheet
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 10094-11-A | PRESSURE MULTIPIN CONNECTOR MIL-C-5015 Type | 10 | 700V | 7 | 1/2" NPT | 500 | 34 | Yes |
0 in stock
$388.08
|
Enquire | |
| 10184-08-A | PRESSURE MULTIPIN CONNECTOR MIL-C-5015 Type | 4 | 700V | 7 | 1/2" NPT | 600 | 41 | Yes |
0 in stock
$294.36
|
Enquire | |
| 9263-03-A | PRESSURE COAXIAL MHV | 5kV | 3.6 | 3/8" NPT | 1400 | 97 | No |
0 in stock
$135.96
|
Enquire | ||
| 9263-04-A | PRESSURE COAXIAL BNC | 500V | 3.6 | 3/8" NPT | 1400 | 97 | No |
0 in stock
$129.36
|
Enquire | ||
| 9263-06-A | PRESSURE COAXIAL SHV | 5kV | 16.5 | 3/8" NPT | 1600 | 110 | Yes |
0 in stock
$158.40
|
Enquire | ||
| 10185-08-A | PRESSURE MULTIPIN CONNECTOR MIL-C-5015 Type | 6 | 700V | 7 | 1/2" NPT | 550 | 38 | Yes |
0 in stock
$343.20
|
Enquire |
