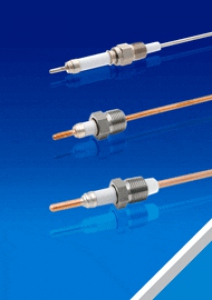

NPT Feedthrough

Specifications

NPT Fitting: 316 Stainless steel

Conductor: Copper or 304 Stainless steel

Insulation: Alumina ceramic

Magnetic materials: See table

Voltage Rating: See table

Current Rating: See table

Temperature Range: -269º C to 450º C

Pressure @ 20ºC: See data sheet

Leak Rate: <1x10-10 atm-cc/sec (He)

PDF Downloads


21143-01-A	PRESSURE FEEDTHROUGH	25kV	185	Copper	3/8" NPT	1000	69	Yes	0 in stock $186.12		Enquire
21322-01-A	PRESSURE FEEDTHROUGH	20kV	3.6	304 Stn. Stl.	1/8" NPT	4000	275	No	0 in stock $184.80		Enquire
21324-01-A	PRESSURE FEEDTHROUGH	20kV	55	Copper	1/8" NPT	4000	275	No	0 in stock $145.20		Enquire
2846-01-A	PRESSURE FEEDTHROUGH	5kV	27	Copper	1/8" NPT	4000	275	Yes	0 in stock $158.40		Enquire
21152-01-A	PRESSURE FEEDTHROUGH	10kV	100	Copper	3/8" NPT	1000	69	Yes	0 in stock $200.64		Enquire
