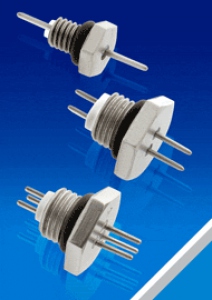

50039-01-A HIGH PRESSURE FEEDTHROUGH 1 500V 4 5/16" 10-32. Yes
0 in stock
$73.92
Enquire
50040-01-A HIGH PRESSURE FEEDTHROUGH 2 500V 4 9/16" 3/8-24. Yes
0 in stock
$95.04
Enquire
50041-01-A HIGH PRESSURE FEEDTHROUGH 3 500V 4 9/16" 3/8-24. Yes
0 in stock
$100.32
Enquire
Specifications
Body: 316 Stainless steel
O-ring: Viton®
Pin: Alumel (Nickel Plated)
Insulation: Glass-ceramic & Alumina ceramic
Magnetic materials: Yes
Voltage Rating: 500V DC
Current Rating: 4 Amps per pin
Temperature Range: -269º C to 450º C
Pressure @ 20ºC: 1 pin: 25,000 (1724 Bar)
2 Pin: 20,000 (1379 Bar)
3 Pin: 20,000 (1379 Bar)
Leak Rate: <1x10-10 atm-cc/sec (He)
Data sheet
