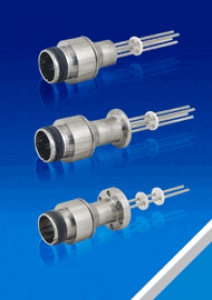

Circular: Single Ended Power MIL-C-5015
Specifications
Shell:
304 Stainless steel
Pins:
Nickel or Molybdenum
Insulation:
Alumina ceramic
Magnetic materials:
See table
Voltage Rating:
700V DC
Current Rating:
See table
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
475 PSIG (33 Bar)
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 18093-02-W | 2 | 0.094 | Weld | 700V | 16 | Nickel | Yes |
0 in stock
$269.28
|
Enquire | |
| 18093-04-W | 2 | 0.094 | Weld | 700V | 28 | Molybdenum | No |
0 in stock
$283.80
|
Enquire | |
| 18093-06-W | 4 | 0.094 | Weld | 700V | 16 | Nickel | Yes |
0 in stock
$323.40
|
Enquire | |
| 18093-08-W | 4 | 0.094 | Weld | 700V | 28 | Molybdenum | No |
0 in stock
$351.12
|
Enquire | |
| 18094-02-KF | 2 | 0.094 | NW16KF | 700V | 16 | Nickel | Yes |
0 in stock
$311.52
|
Enquire | |
| 18094-04-KF | 2 | 0.094 | NW16KF | 700V | 28 | Molybdenum | No |
0 in stock
$339.24
|
Enquire | |
| 18094-06-KF | 4 | 0.094 | NW16KF | 700V | 16 | Nickel | Yes |
0 in stock
$372.24
|
Enquire | |
| 18094-08-KF | 4 | 0.094 | NW16KF | 700V | 28 | Molybdenum | No |
0 in stock
$417.12
|
Enquire | |
| 18095-02-CF | 2 | 0.094 | NW16CF | 700V | 16 | Nickel | Yes |
1 in stock
$311.52
|
||
| 18095-04-CF | 2 | 0.094 | NW16CF | 700V | 28 | Molybdenum | No |
0 in stock
$339.24
|
Enquire | |
| 18095-06-CF | 4 | 0.094 | NW16CF | 700V | 16 | Nickel | Yes |
0 in stock
$382.80
|
Enquire | |
| 18095-08-CF | 4 | 0.094 | NW16CF | 700V | 28 | Molybdenum | No |
0 in stock
$417.12
|
Enquire | |
| 18096-02-CF | 2 | 0.094 | NW35CF | 700V | 16 | Nickel | Yes |
0 in stock
$340.56
|
Enquire | |
| 18096-04-CF | 2 | 0.094 | NW35CF | 700V | 28 | Molybdenum | No |
0 in stock
$368.28
|
Enquire | |
| 18096-06-CF | 4 | 0.094 | NW35CF | 700V | 16 | Nickel | Yes |
0 in stock
$417.12
|
Enquire | |
| 18096-08-CF | 4 | 0.094 | NW35CF | 700V | 28 | Molybdenum | No |
0 in stock
$447.48
|
Enquire | |
| 18097-02-W | 2 | 0.142 | Weld | 700V | 25 | Nickel | Yes |
0 in stock
$369.60
|
Enquire | |
| 18097-04-W | 2 | 0.142 | Weld | 700V | 46 | Molybdenum | No |
0 in stock
$399.96
|
Enquire | |
| 18097-06-W | 4 | 0.142 | Weld | 700V | 25 | Nickel | Yes |
0 in stock
$426.36
|
Enquire | |
| 18097-08-W | 4 | 0.142 | Weld | 700V | 46 | Molybdenum | No |
0 in stock
$468.60
|
Enquire | |
| 18098-02-KF | 2 | 0.142 | NW40KF | 700V | 25 | Nickel | Yes |
0 in stock
$434.28
|
Enquire | |
| 18098-04-KF | 2 | 0.142 | NW40KF | 700V | 46 | Molybdenum | No |
0 in stock
$465.96
|
Enquire | |
| 18098-06-KF | 4 | 0.142 | NW40KF | 700V | 25 | Nickel | Yes |
0 in stock
$491.04
|
Enquire | |
| 18098-08-KF | 4 | 0.142 | NW40KF | 700V | 46 | Molybdenum | No |
0 in stock
$570.24
|
Enquire | |
| 18099-02-CF | 2 | 0.142 | NW35CF | 700V | 25 | Nickel | Yes |
0 in stock
$451.44
|
Enquire | |
| 18099-04-CF | 2 | 0.142 | NW35CF | 700V | 46 | Molybdenum | No |
0 in stock
$484.44
|
Enquire | |
| 18099-06-CF | 4 | 0.142 | NW35CF | 700V | 25 | Nickel | Yes |
0 in stock
$510.84
|
Enquire | |
| 18099-08-CF | 4 | 0.142 | NW35CF | 700V | 46 | Molybdenum | No |
0 in stock
$570.24
|
Enquire |
