Ceramtec

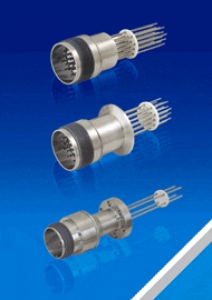

Circular: Single Ended MIL-C-5015
Specifications
Shell:
304 Stainless steel
Pins:
Alumel
Insulation:
Alumina ceramic
Magnetic materials:
Yes
Voltage Rating:
700V DC
Current Rating:
5 Amps per pin
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
4 Pin: 600 PSIG (41 Bar)
6 Pin: 550 PSIG (38 Bar)
10 Pin: 500 PSIG ( 34 Bar)
20 Pin: 125 PSIG (8.6 Bar)
35 Pin: 50 PSIG (3.4 Bar)
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 10094-05-W | MULTIPIN CONNECTOR | 10 | Weld | 700V | 7 | Yes |
0 in stock
$402.60
|
Enquire | |
| 10094-06-CF | MULTIPIN CONNECTOR | 10 | NW16CF | 700V | 7 | Yes |
0 in stock
$455.40
|
Enquire | |
| 10094-09-CF | MULTIPIN CONNECTOR | 10 | NW35CF | 700V | 7 | Yes |
0 in stock
$476.52
|
Enquire | |
| 10096-03-CF | MULTIPIN CONNECTOR | 20 | NW35CF | 700V | 7 | Yes |
0 in stock
$582.12
|
Enquire | |
| 10096-04-W | MULTIPIN CONNECTOR | 20 | Weld | 700V | 7 | Yes |
0 in stock
$518.76
|
Enquire | |
| 10184-05-W | MULTIPIN CONNECTOR | 4 | Weld | 700V | 7 | Yes |
0 in stock
$215.16
|
Enquire | |
| 10184-06-CF | MULTIPIN CONNECTOR | 4 | NW16CF | 700V | 7 | Yes |
7 in stock
$250.80
|
||
| 10184-07-CF | MULTIPIN CONNECTOR | 4 | NW35CF | 700V | 7 | Yes |
0 in stock
$281.16
|
Enquire | |
| 10186-03-CF | MULTIPIN CONNECTOR | 35 | NW35CF | 700V | 7 | Yes |
0 in stock
$1,494.24
|
Enquire | |
| 10186-04-W | MULTIPIN CONNECTOR | 35 | Weld | 700V | 7 | Yes |
0 in stock
$1,426.92
|
Enquire | |
| 13744-02-KF | MULTIPIN CONNECTOR | 20 | NW40KF | 700V | 7 | Yes |
0 in stock
$607.20
|
Enquire | |
| 15103-02-KF | MULTIPIN CONNECTOR | 35 | NW40KF | 700V | 7 | Yes |
0 in stock
$1,494.24
|
Enquire | |
| 17150-02-KF | MULTIPIN CONNECTOR | 4 | NW16KF | 700V | 7 | Yes |
0 in stock
$260.04
|
Enquire | |
| 17151-02-KF | MULTIPIN CONNECTOR | 6 | NW16KF | 700V | 7 | Yes |
0 in stock
$282.48
|
Enquire | |
| 17155-04-KF | MULTIPIN CONNECTOR | 10 | NW16KF | 700V | 7 | Yes |
0 in stock
$473.88
|
Enquire | |
| 10185-05-W | MULTIPIN CONNECTOR | 6 | Weld | 700V | 7 | Yes |
0 in stock
$246.84
|
Enquire | |
| 10185-06-CF | MULTIPIN CONNECTOR | 6 | NW16CF | 700V | 7 | Yes |
0 in stock
$293.04
|
Enquire | |
| 10185-07-CF | MULTIPIN CONNECTOR | 6 | NW35CF | 700V | 7 | Yes |
0 in stock
$315.48
|
Enquire |
