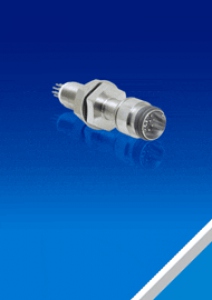

15717-01-A BASEPLATE MULTIPIN CONNECTOR MIL-C-5015 Type 10 1" Bolt 700V 7 Yes
0 in stock
$506.88
Enquire
Specifications
Bolt: 304 Stainless steel
Pins: Alumel
Insulation: Alumina ceramic
Magnetic materials: Yes
Voltage Rating: 700V DC
Current Rating: 7 Amps per pin
Temperature Range: -25º C to 205º C
Pressure @ 20ºC: 200 PSIG (14 Bar)
Leak Rate: <1x10-10 atm-cc/sec (He)
Data Sheet
