Home Isolators Vacuum - Insulator ID: 1.3 [32]

Ceramtec

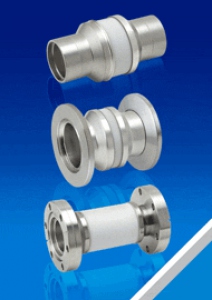

Vacuum - Insulator ID: 1.3 [32]

Specifications
Tube: Kovar or 304 Stainless steel
Insulation: Alumina ceramic
Magnetic materials: See table
Voltage Rating: See table
Temperature Range: See data sheet
Pressure @ 20ÂșC: See table
Leak Rate: <1x10-10 atm-cc/sec (He)
PDF Downloads
Data sheet

17199-01-W ISOLATOR VACUUM 1.3 (32) 5kV Weld 250 17 No
0 in stock
$356.40
Enquire
17199-02-W ISOLATOR VACUUM 1.3 (32) 35kV Weld 250 17 No
0 in stock
$369.60
Enquire
17199-03-W ISOLATOR VACUUM 1.3 (32) 65kV Weld 250 17 No
0 in stock
$599.28
Enquire
17238-01-KF ISOLATOR VACUUM 1.3 (32) 5kV NW40KF No
0 in stock
$392.04
Enquire
17238-02-KF ISOLATOR VACUUM 1.3 (32) 35kV NW40KF No
0 in stock
$414.48
Enquire
17238-03-KF ISOLATOR VACUUM 1.3 (32) 65kV NW40KF No
0 in stock
$599.28
Enquire
17238-04-KF ISOLATOR VACUUM 1.3 (32) 5kV NW40KF No
0 in stock
$518.76
Enquire
17238-05-KF ISOLATOR VACUUM 1.3 (32) 35kV NW40KF No
0 in stock
$518.76
Enquire
17238-06-KF ISOLATOR VACUUM 1.3 (32) 65kV NW40KF No
0 in stock
$761.64
Enquire
8001-02-CF ISOLATOR VACUUM 1.3 (32) 35kV NW35CF 350 24 Yes
0 in stock
$580.80
Enquire
8001-03-CF ISOLATOR VACUUM 1.3 (32) 5kV NW35CF 350 24 Yes
0 in stock
$392.04
Enquire
8001-04-CF ISOLATOR VACUUM 1.3 (32) 65kV NW35CF 350 24 Yes
0 in stock
$599.28
Enquire
8001-06-CF ISOLATOR VACUUM 1.3 (32) 5kV NW35CF 250 17 No
0 in stock
$518.76
Enquire
8001-07-CF ISOLATOR VACUUM 1.3 (32) 35kV NW35CF 250 17 No
0 in stock
$539.88
Enquire
8001-08-CF ISOLATOR VACUUM 1.3 (32) 65kV NW35CF 250 17 No
0 in stock
$761.64
Enquire
9999-01-W ISOLATOR VACUUM 1.3 (32) 35kV Weld 350 24 Yes
0 in stock
$209.88
Enquire
9999-03-W ISOLATOR VACUUM 1.3 (32) 5kV Weld 350 24 Yes
1 in stock
$187.44
9999-04-W ISOLATOR VACUUM 1.3 (32) 65kV Weld 350 24 Yes
0 in stock
$439.56
Enquire
