Ceramtec

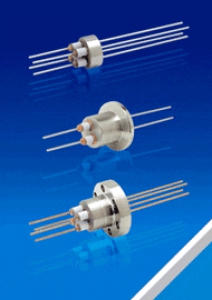

Power to 6kV / to 27 Amps / 1 to 4 Pins
Specifications
Housing:
304 Stainless steel
Pin:
See table
Insulation:
Alumina ceramic
Flange:
N/A
Magnetic materials:
See table
Voltage Rating:
See table
Current Rating:
See table
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
3500 PSIG (241 Bar)
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 17018-01-KF | 2 | NW16KF | 6kV | 1.8 | 304 Stn. Stl. | No |
0 in stock
$178.20
|
Enquire | |
| 17018-02-KF | 2 | NW16KF | 6kV | 8.2 | Nickel | Yes |
0 in stock
$178.20
|
Enquire | |
| 17018-04-KF | 2 | NW16KF | 6kV | 27 | Copper | No |
0 in stock
$178.20
|
Enquire | |
| 17019-01-KF | 4 | NW16KF | 6kV | 1.8 | 304 Stn. Stl. | No |
0 in stock
$198.00
|
Enquire | |
| 17019-02-KF | 4 | NW16KF | 6kV | 8.2 | Nickel | Yes |
0 in stock
$198.00
|
Enquire | |
| 17019-04-KF | 4 | NW16KF | 6kV | 27 | Copper | No |
0 in stock
$198.00
|
Enquire | |
| 7844-01-W | 1 | Weld | 2kV | 8.2 | Nickel | Yes |
0 in stock
$58.08
|
Enquire | |
| 7844-02-W | 1 | Weld | 2kV | 1.8 | 304 Stn. Stl. | No |
0 in stock
$59.40
|
Enquire | |
| 7844-04-W | 1 | Weld | 2kV | 27 | Copper | No |
0 in stock
$63.36
|
Enquire | |
| 7844-21-W | 1 | Weld | 2kV | 13.5 | Molybdenum | No |
0 in stock
$64.68
|
Enquire | |
| 8176-02-CF | 4 | NW16CF | 3kV | 8.2 | Nickel | Yes |
1 in stock
$192.72
|
||
| 8176-08-CF | 4 | NW16CF | 3kV | 27 | Copper | No |
0 in stock
$186.12
|
Enquire | |
| 8177-01-W | 4 | Weld | 3kV | 8.2 | Nickel | Yes |
0 in stock
$133.32
|
Enquire | |
| 8177-02-W | 4 | Weld | 3kV | 1.8 | 304 Stn. Stl. | No |
0 in stock
$129.36
|
Enquire | |
| 8177-04-W | 4 | Weld | 3kV | 27 | Copper | No |
0 in stock
$129.36
|
Enquire | |
| 8177-06-W | 4 | Weld | 3kV | 13.5 | Molybdenum | No |
0 in stock
$138.60
|
Enquire | |
| 9215-02-W | 2 | Weld | 6kV | 8.2 | Nickel | Yes |
0 in stock
$118.80
|
Enquire | |
| 9215-04-W | 2 | Weld | 6kV | 1.8 | 304 Stn. Stl. | No |
0 in stock
$112.20
|
Enquire | |
| 9215-08-W | 2 | Weld | 6kV | 27 | Copper | No |
0 in stock
$112.20
|
Enquire | |
| 9215-14-W | 2 | Weld | 6kV | 13.5 | Molybdenum | No |
0 in stock
|
Enquire | |
| 9216-02-W | 4 | Weld | 6kV | 8.2 | Nickel | Yes |
0 in stock
$133.32
|
Enquire | |
| 9216-04-W | 4 | Weld | 6kV | 1.8 | 304 Stn. Stl. | No |
0 in stock
$133.32
|
Enquire | |
| 9216-08-W | 4 | Weld | 6kV | 27 | Copper | No |
0 in stock
$130.68
|
Enquire | |
| 9216-14-W | 4 | Weld | 6kV | 13.5 | Molybdenum | No |
1 in stock
|
Enquire | |
| 9791-02-W | 1 | Weld | 5kV | 8.2 | Nickel | Yes |
0 in stock
$64.68
|
Enquire | |
| 9791-04-W | 1 | Weld | 5kV | 1.8 | 304 Stn. Stl. | No |
50 in stock
$64.68
|
||
| 9791-06-W | 1 | Weld | 5kV | - | Nickel Tube | Yes |
0 in stock
$77.88
|
Enquire | |
| 9791-08-W | 1 | Weld | 5kV | 27 | Copper | No |
0 in stock
$71.28
|
Enquire | |
| 9791-09-W | 1 | Weld | 5kV | 13.5 | Molybdenum | No |
0 in stock
|
Enquire | |
| 9871-01-CF | 2 | NW16CF | 6kV | 8.2 | Nickel | Yes |
0 in stock
$178.20
|
Enquire | |
| 9871-02-CF | 2 | NW16CF | 6kV | 1.8 | 304 Stn. Stl. | No |
0 in stock
$178.20
|
Enquire | |
| 9871-04-CF | 2 | NW16CF | 6kV | 27 | Copper | No |
0 in stock
$171.60
|
Enquire | |
| 9871-05-CF | 4 | NW16CF | 6kV | 8.2 | Nickel | Yes |
0 in stock
$198.00
|
Enquire | |
| 9871-06-CF | 4 | NW16CF | 6kV | 1.8 | 304 Stn. Stl. | No |
0 in stock
$198.00
|
Enquire | |
| 9871-08-CF | 4 | NW16CF | 6kV | 27 | Copper | No |
0 in stock
$190.08
|
Enquire |
