Ceramtec

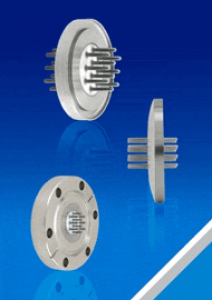

Multipin Header 1kV / 5 Amps / 3 to 41 Pins
Specifications
Housing:
304 Stainless steel
Pin:
330 Stainless steel (Nickel plated)
Insulation:
Glass-ceramic
Magnetic materials:
No
Voltage Rating:
1kV DC
Current Rating:
5 Amps per pin
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
ISO KF: 0 PSIG
3 Pin: 550 PSIG (38 Bar)
6 Pin: 500 PSIG (34 Bar)
10 Pin: 450 PSIG (31 Bar)
19 Pin: 400 PSIG (28 Bar)
32 Pin: 375 PSIG (26 Bar)
41 Pin: 350 PSIG (24 Bar)
PDF Downloads
| 17020-01-CF | 3 | Straight | NW35CF | 1kV | 5 Amps |
0 in stock
$223.08
|
Enquire | |
| 17021-01-CF | 6 | Straight | NW35CF | 1kV | 5 Amps |
0 in stock
$237.60
|
Enquire | |
| 17022-01-CF | 10 | Straight | NW35CF | 1kV | 5 Amps |
0 in stock
$252.12
|
Enquire | |
| 17023-01-CF | 19 | Straight | NW35CF | 1kV | 5 Amps |
0 in stock
$266.64
|
Enquire | |
| 17030-01-CF | 3 | Solder Cup | NW35CF | 1kV | 5 Amps |
0 in stock
$252.12
|
Enquire | |
| 17031-01-CF | 6 | Solder Cup | NW35CF | 1kV | 5 Amps |
0 in stock
$274.56
|
Enquire | |
| 17032-01-CF | 10 | Solder Cup | NW35CF | 1kV | 5 Amps |
0 in stock
$297.00
|
Enquire | |
| 17033-01-CF | 19 | Solder Cup | NW35CF | 1kV | 5 Amps |
0 in stock
$318.12
|
Enquire | |
| 17040-01-KF | 3 | Straight | NW25KF | 1kV | 5 Amps |
0 in stock
$215.16
|
Enquire | |
| 17041-01-KF | 6 | Straight | NW40KF | 1kV | 5 Amps |
0 in stock
$228.36
|
Enquire | |
| 17042-01-KF | 10 | Straight | NW40KF | 1kV | 5 Amps |
0 in stock
$252.12
|
Enquire | |
| 17043-01-KF | 19 | Straight | NW40KF | 1kV | 5 Amps |
0 in stock
$266.64
|
Enquire | |
| 17050-01-KF | 3 | Solder Cup | NW25KF | 1kV | 5 Amps |
0 in stock
$244.20
|
Enquire | |
| 17051-01-KF | 6 | Solder Cup | NW40KF | 1kV | 5 Amps |
0 in stock
$274.56
|
Enquire | |
| 17052-01-KF | 10 | Solder Cup | NW40KF | 1kV | 5 Amps |
0 in stock
$297.00
|
Enquire | |
| 17053-01-KF | 19 | Solder Cup | NW40KF | 1kV | 5 Amps |
0 in stock
$318.12
|
Enquire | |
| 18840-01-W | 3 | Straight | Weld | 1kV | 5 Amps |
0 in stock
$155.76
|
Enquire | |
| 18842-01-W | 10 | Straight | Weld | 1kV | 5 Amps |
0 in stock
$178.20
|
Enquire | |
| 18850-01-W | 3 | Solder Cup | Weld | 1kV | 5 Amps |
0 in stock
$186.12
|
Enquire | |
| 18851-01-W | 6 | Solder Cup | Weld | 1kV | 5 Amps |
0 in stock
$200.64
|
Enquire | |
| 23989-01-W | 32 | Straight | Weld | 1kV | 5 Amps |
0 in stock
|
Enquire | |
| 23990-01-W | 41 | Straight | Weld | 1kV | 5 Amps |
0 in stock
|
Enquire | |
| 25305-01-W | 19 | Solder Cup | Weld | 1kV | 5 Amps |
0 in stock
|
Enquire | |
| 23991-01-KF | 32 | Straight | NW40KF | 1kV | 5 Amps |
in stock
|
Enquire | |
| 23992-01-KF | 41 | Straight | NW50KF | 1kV | 5 Amps |
in stock
|
Enquire | |
| 23993-01-CF | 32 | Straight | NW35CF | 1kV | 5 Amps |
in stock
|
Enquire | |
| 23994-01-CF | 41 | Straight | NW50CF | 1kV | 5 Amps |
in stock
|
Enquire | |
| 23995-01-W | 32 | Solder Cup | Weld | 1kV | 5 Amps |
in stock
|
Enquire | |
| 23996-01-W | 41 | Solder Cup | Weld | 1kV | 5 Amps |
in stock
|
Enquire | |
| 23997-01-KF | 32 | Solder Cup | NW40KF | 1kV | 5 Amps |
in stock
|
Enquire | |
| 23998-01-KF | 41 | Solder Cup | NW50KF | 1kV | 5 Amps |
in stock
|
Enquire | |
| 23999-01-CF | 32 | Solder Cup | NW35CF | 1kV | 5 Amps |
in stock
|
Enquire | |
| 24000-01-CF | 41 | Solder Cup | NW50CF | 1kV | 5 Amps |
in stock
|
Enquire | |
| 18841-01-W | 6 | Straight | Weld | 1kV | 5 Amps |
in stock
|
Enquire | |
| 25304-01-W | 19 | Straight | Weld | 1kV | 5 Amps |
0 in stock
|
Enquire |
