Ceramtec

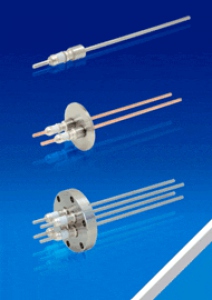

Instrumentation / Power to 2kV / to 16 Amps / 1 to 8 Pins
Specifications - Superthru
Housing:
Kovar
Pin:
Pin - Molybdenum, Tube - Kovar
Insulation:
Alumina ceramic
Flange:
Magnetic materials:
Yes
Voltage Rating:
500V DC
Current Rating:
See table
Temperature Range:
-80º C to 450º C
Pressure @ 20ºC:
2500 PSIG (172 Bar), ISO KF 0 PSIG
Leak Rate:
<1x10-10 atm-cc/sec (He)
Specifications - 1, 2, 4 & 8 Conductor
Housing:
304 Stainless steel
Pin:
See table
Insulation:
Alumina ceramic
Flange:
304 Stainless steel
Magnetic materials:
See table
Voltage Rating:
See table
Current Rating:
See table
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
1 Pin: 3500 PSIG (241 Bar), 2 & 4 pin: 1400 PSIG (96 Bar), 8 pin: 500 PSIG (34 Bar)
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 17006-01-KF | 2 | NW16KF | 2kV | 1.1 | 304 Stn. Stl. | No |
0 in stock
$170.28
|
Enquire | |
| 17006-02-KF | 2 | NW16KF | 2kV | 5 | Nickel | No |
0 in stock
$170.28
|
Enquire | |
| 17006-03-KF | 2 | NW16KF | 2kV | 8.5 | Molybdenum | No |
0 in stock
$170.28
|
Enquire | |
| 17006-04-KF | 2 | NW16KF | 2kV | 16 | Copper | No |
0 in stock
$170.28
|
Enquire | |
| 17007-01-KF | 4 | NW16KF | 2kV | 1.1 | 304 Stn. Stl. | No |
0 in stock
$192.72
|
Enquire | |
| 17007-02-KF | 4 | NW16KF | 2kV | 5 | Nickel | Yes |
0 in stock
$192.72
|
Enquire | |
| 17007-03-KF | 4 | NW16KF | 2kV | 8.5 | Molybdenum | No |
0 in stock
$207.24
|
Enquire | |
| 17007-04-KF | 4 | NW16KF | 2kV | 16 | Copper | No |
0 in stock
$192.72
|
Enquire | |
| 17008-01-KF | 8 | NW16KF | 1.5kV | 1.1 | 304 Stn. Stl. | No |
0 in stock
$221.76
|
Enquire | |
| 17008-02-KF | 8 | NW16KF | 1.5kV | 5 | Nickel | Yes |
0 in stock
$229.68
|
Enquire | |
| 17008-03-KF | 8 | NW16KF | 1.5kV | 8.5 | Molybdenum | No |
0 in stock
$260.04
|
Enquire | |
| 17008-04-KF | 8 | NW16KF | 1.5kV | 16 | Copper | No |
0 in stock
$221.76
|
Enquire | |
| 17046-01-CF | 2 | NW16CF | 2kV | 1.1 | 304 Stn. Stl. | No |
0 in stock
$170.28
|
Enquire | |
| 17046-02-CF | 2 | NW16CF | 2kV | 5 | Nickel | Yes |
0 in stock
$170.28
|
Enquire | |
| 17046-03-CF | 2 | NW16CF | 2kV | 8.5 | Molybdenum | No |
0 in stock
$170.28
|
Enquire | |
| 17046-04-CF | 2 | NW16CF | 2kV | 16 | Copper | No |
0 in stock
$170.28
|
Enquire | |
| 17048-01-CF | 4 | NW16CF | 2kV | 1.1 | 304 Stn. Stl. | No |
0 in stock
$192.72
|
Enquire | |
| 17048-02-CF | 4 | NW16CF | 2kV | 5 | Nickel | Yes |
0 in stock
$192.72
|
Enquire | |
| 17048-03-CF | 4 | NW16CF | 2kV | 8.5 | Molybdenum | No |
0 in stock
$207.24
|
Enquire | |
| 17048-04-CF | 4 | NW16CF | 2kV | 16 | Copper | No |
0 in stock
$186.12
|
Enquire | |
| 9294-01-W | 8 | Weld | 1.5kV | 5 | Nickel | Yes |
0 in stock
$165.00
|
Enquire | |
| 9294-03-W | 8 | Weld | 1.5kV | 1.1 | 304 Stn. Stl. | No |
0 in stock
$165.00
|
Enquire | |
| 9294-04-W | 8 | Weld | 1.5kV | 8.5 | Molybdenum | No |
0 in stock
$192.72
|
Enquire | |
| 9294-08-W | 8 | Weld | 1.5kV | 16 | Copper | No |
0 in stock
$165.00
|
Enquire | |
| 9297-01-W | 1 | Weld | 1kV | 5 | Nickel | Yes |
0 in stock
$62.04
|
Enquire | |
| 9297-03-W | 1 | Weld | 1kV | 1.1 | 304 Stn. Stl. | No |
0 in stock
$59.40
|
Enquire | |
| 9297-06-W | 1 | Weld | 1kV | 8.5 | Molybdenum | No |
0 in stock
$63.36
|
Enquire | |
| 9297-08-W | 1 | Weld | 1kV | 16 | Copper | No |
0 in stock
$63.36
|
Enquire | |
| 9298-01-W | 2 | Weld | 2kV | 5 | Nickel | Yes |
0 in stock
$105.60
|
Enquire | |
| 9298-05-W | 2 | Weld | 2kV | 8.5 | Molybdenum | No |
0 in stock
$108.24
|
Enquire | |
| 9298-06-W | 2 | Weld | 2kV | 16 | Copper | No |
0 in stock
$112.20
|
Enquire | |
| 9298-07-W | 2 | Weld | 2kV | 1.1 | 304 Stn. Stl. | No |
0 in stock
$102.96
|
Enquire | |
| 9299-01-W | 4 | Weld | 2kV | 5 | Nickel | No |
0 in stock
$129.36
|
Enquire | |
| 9299-04-W | 4 | Weld | 2kV | 8.5 | Molybdenum | No |
0 in stock
$139.92
|
Enquire | |
| 9299-05-W | 4 | Weld | 2kV | 1.1 | 304 Stn. Stl. | No |
0 in stock
$121.44
|
Enquire | |
| 9299-06-W | 4 | Weld | 2kV | 16 | Copper | No |
0 in stock
$126.72
|
Enquire | |
| 9340-01-CF | 8 | NW16CF | 1.5kV | 5 | Nickel | Yes |
0 in stock
$229.68
|
Enquire | |
| 9340-04-CF | 8 | NW16CF | 1.5kV | 8.5 | Molybdenum | No |
0 in stock
$260.04
|
Enquire | |
| 9340-05-CF | 8 | NW16CF | 1.5kV | 16 | Copper | No |
0 in stock
$229.68
|
Enquire | |
| 9340-06-CF | 8 | NW16CF | 1.5kV | 1.1 | 304 Stn. Stl. | No |
0 in stock
$229.68
|
Enquire | |
| 9809-01-W | 1 | Weld or Braze | 500V | Kovar Tube | Yes |
0 in stock
$84.48
|
Enquire | ||
| 9809-02-W | 1 | Weld or Braze | 500V | 11.5 | Molybdenum | Yes |
0 in stock
$55.44
|
Enquire |
