Ceramtec

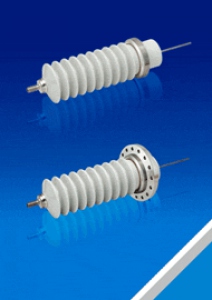

High Voltage Fluted: to 100kV / 6.5 Amps
Specifications
Housing:
304 Stainless steel
Pin:
304 Stainless steel
Insulation:
Alumina ceramic
Flange:
304 Stainless steel
Magnetic materials:
Yes
Voltage Rating:
70kV - 100kV
Current Rating:
6.5 Amps
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
125 PSIG (8.6 Bar), ISO KF 0 PSIG
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 6523-01-W | FEEDTHROUGH | 1 | Weld | 100kV | 6.5 | 304 Stn. Stl. | Yes |
0 in stock
$2,757.48
|
Enquire | |
| 6526-01-W | FEEDTHROUGH | 1 | Weld | 70kV | 6.5 | 304 Stn. Stl. | Yes |
0 in stock
$1,107.48
|
Enquire | |
| 6722-01-CF | FEEDTHROUGH | 1 | NW100CF | 100kV | 6.5 | 304 Stn. Stl. | Yes |
0 in stock
$2,943.60
|
Enquire | |
| 7884-01-CF | FEEDTHROUGH | 1 | NW100CF | 70kV | 6.5 | 304 Stn. Stl. | Yes |
0 in stock
$1,463.88
|
Enquire |
