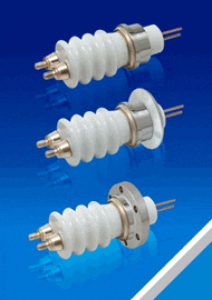

High Voltage Fluted: 30kV / 4 Amps / 1 to 2 Pins
Specifications
Housing:
304 Stainless steel
Pin:
304 Stainless steel
Insulation:
Alumina ceramic
Flange:
304 Stainless steel
Magnetic materials:
Yes
Voltage Rating:
30 kV DC
Current Rating:
4 Amps per pin
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
250 PSIG (17 Bar), ISO KF 0 PSIG
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 16729-03-CF | FEEDTHROUGH | 1 | NW35CF | 30kV | 4 | 304 Stn. Stl. | Yes |
0 in stock
$306.24
|
Enquire | |
| 16764-06-CF | FEEDTHROUGH | 2 | NW35CF | 30kV | 4 | 304 Stn. Stl. | Yes |
0 in stock
$703.56
|
Enquire | |
| 17100-01-KF | FEEDTHROUGH | 1 | NW40KF | 30kV | 4 | 304 Stn. Stl. | Yes |
0 in stock
$318.12
|
Enquire | |
| 17103-03-KF | FEEDTHROUGH | 2 | NW40KF | 30kV | 4 | 304 Stn. Stl. | Yes |
0 in stock
$703.56
|
Enquire | |
| 6530-03-W | FEEDTHROUGH | 1 | Weld | 30kV | 4 | 304 Stn. Stl. | Yes |
0 in stock
$223.08
|
Enquire | |
| 6532-05-W | FEEDTHROUGH | 2 | Weld | 30kV | 4 | 304 Stn. Stl. | Yes |
0 in stock
|
Enquire |
