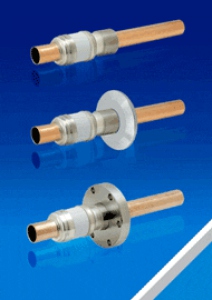

High Power / Liquid Cooled - 8kV / to 800 Amps
Specifications
Housing:
304 Stainless steel
Pin/Tube
Copper
Insulation:
Alumina ceramic
Flange:
304 Stainless steel
Magnetic materials:
Yes
Voltage Rating:
8 kV DC
Current Rating:
See table
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
350 PSIG (24 Bar), ISO KF 0 PSIG
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 16702-01-CF | FEEDTHROUGH | 1 | NW35CF | 8kV | 800 | Copper | Yes |
0 in stock
$326.04
|
Enquire | |
| 16702-03-CF | FEEDTHROUGH | 1 | NW35CF | 8kV | Copper | Yes |
0 in stock
$340.56
|
Enquire | ||
| 17094-04-KF | FEEDTHROUGH | 1 | NW40KF | 8kV | 800 | Copper | Yes |
0 in stock
$326.04
|
Enquire | |
| 17094-06-KF | FEEDTHROUGH | 1 | NW40KF | 8kV | Copper | Yes |
0 in stock
$340.56
|
Enquire | ||
| 17095-04-W | FEEDTHROUGH | 1 | Weld | 8kV | 470 | Copper | Yes |
0 in stock
$270.60
|
Enquire | |
| 17095-06-W | FEEDTHROUGH | 1 | Weld | 8kV | Copper | Yes |
0 in stock
$297.00
|
Enquire | ||
| 17096-04-CF | FEEDTHROUGH | 1 | NW35CF | 8kV | 470 | Copper | Yes |
0 in stock
$333.96
|
Enquire | |
| 17097-04-KF | FEEDTHROUGH | 1 | NW25KF | 8kV | 470 | Copper | Yes |
0 in stock
$348.48
|
Enquire | |
| 17097-06-KF | FEEDTHROUGH | 1 | NW25KF | 8kV | Copper | Yes |
0 in stock
$355.08
|
Enquire | ||
| 2781-01-W | FEEDTHROUGH | 1 | Weld | 8kV | 800 | Copper | Yes |
0 in stock
$300.96
|
Enquire | |
| 2781-02-W | FEEDTHROUGH | 1 | Weld | 8kV | Copper | Yes |
0 in stock
$260.04
|
Enquire |
