Ceramtec

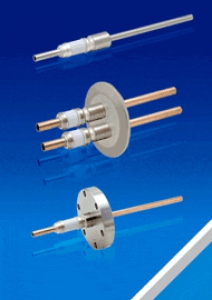

High Power / Liquid Cooled - 8kV / to 330 Amps
Specifications
Housing:
304 Stainless steel
Tube
See table
Insulation:
Alumina ceramic
Flange:
304 Stainless steel
Magnetic materials:
Yes
Voltage Rating:
8 kV DC
Current Rating:
N/A
Temperature Range:
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC:
750 PSIG (52 Bar), ISO KF 0 PSIG
Leak Rate:
<1x10-10 atm-cc/sec (He)
PDF Downloads
| 14308-05-KF | FEEDTHROUGH | 2 | NW40KF | 8kV | Copper | Yes |
0 in stock
$260.04
|
Enquire | ||
| 14308-06-KF | FEEDTHROUGH | 2 | NW40KF | 8kV | 304 Stn. Stl. | Yes |
0 in stock
$260.04
|
Enquire | ||
| 16614-02-KF | FEEDTHROUGH | 1 | NW16KF | 8kV | 304 Stn. Stl. | Yes |
0 in stock
$163.68
|
Enquire | ||
| 16614-05-KF | FEEDTHROUGH | 1 | NW16KF | 8kV | Copper | Yes |
0 in stock
$163.68
|
Enquire | ||
| 16705-02-CF | FEEDTHROUGH | 2 | NW35CF | 8kV | Copper | Yes |
0 in stock
$249.48
|
Enquire | ||
| 16705-04-CF | FEEDTHROUGH | 2 | NW35CF | 8kV | 304 Stn. Stl. | Yes |
0 in stock
$260.04
|
Enquire | ||
| 17091-04-KF | FEEDTHROUGH | 1 | NW16KF | 8kV | 330 | Copper | Yes |
0 in stock
$161.04
|
Enquire | |
| 17091-05-KF | FEEDTHROUGH | 1 | NW16KF | 8kV | 304 Stn. Stl. | Yes |
0 in stock
$186.12
|
Enquire | ||
| 17091-06-KF | FEEDTHROUGH | 1 | NW16KF | 8kV | Copper | Yes |
0 in stock
$186.12
|
Enquire | ||
| 17092-04-CF | FEEDTHROUGH | 2 | NW50KF | 8kV | 330 | Copper | Yes |
0 in stock
$281.16
|
Enquire | |
| 17092-05-CF | FEEDTHROUGH | 2 | NW35CF | 8kV | 304 Stn. Stl. | Yes |
0 in stock
$311.52
|
Enquire | ||
| 17092-06-CF | FEEDTHROUGH | 2 | NW35CF | 8kV | Copper | Yes |
0 in stock
$311.52
|
Enquire | ||
| 17093-04-KF | FEEDTHROUGH | 2 | NW50KF | 8kV | Copper | Yes |
0 in stock
$318.12
|
Enquire | ||
| 17093-05-KF | FEEDTHROUGH | 2 | NW50KF | 8kV | 304 Stn. Stl. | Yes |
0 in stock
$348.48
|
Enquire | ||
| 17093-06-KF | FEEDTHROUGH | 2 | NW50KF | 8kV | Copper | Yes |
0 in stock
$348.48
|
Enquire | ||
| 17099-01-CF | FEEDTHROUGH | 1 | NW16CF | 8kV | 304 Stn. Stl. | Yes |
0 in stock
$186.12
|
Enquire | ||
| 17099-02-CF | FEEDTHROUGH | 1 | NW16CF | 8kV | Copper | Yes |
0 in stock
$186.12
|
Enquire | ||
| 17099-06-CF | FEEDTHROUGH | 1 | NW16CF | 8kV | 330 | Copper | Yes |
0 in stock
$165.00
|
Enquire | |
| 2779-02-W | FEEDTHROUGH | 1 | Weld | 8kV | Copper | Yes |
15 in stock
$161.04
|
|||
| 2779-06-W | FEEDTHROUGH | 1 | Weld | 8kV | 304 Stn. Stl. | Yes |
0 in stock
$108.24
|
Enquire | ||
| 2780-01-W | FEEDTHROUGH | 1 | Weld | 8kV | 330 | Copper | Yes |
0 in stock
$112.20
|
Enquire | |
| 2780-02-W | FEEDTHROUGH | 1 | Weld | 8kV | Copper | Yes |
2 in stock
$124.08
|
|||
| 2780-16-W | FEEDTHROUGH | 1 | Weld | 8kV | 304 Stn. Stl. | Yes |
0 in stock
$122.76
|
Enquire | ||
| 6700-05-CF | FEEDTHROUGH | 1 | NW35CF | 8kV | Copper | Yes |
0 in stock
$170.28
|
Enquire | ||
| 6700-08-CF | FEEDTHROUGH | 1 | NW35CF | 8kV | 304 Stn. Stl. | Yes |
0 in stock
$170.28
|
Enquire | ||
| 7161-02-CF | FEEDTHROUGH | 1 | NW16KF | 8kV | 304 Stn. Stl. | Yes |
0 in stock
$163.68
|
Enquire | ||
| 7161-05-CF | FEEDTHROUGH | 1 | NW16KF | 8kV | Copper | Yes |
0 in stock
$163.68
|
Enquire |
