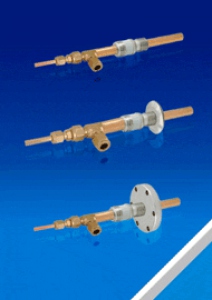

High Power / Liquid Cooled - 8kV / to 1000 Amps

Specifications
Housing: 304 Stainless steel
Tube Tellurium copper
Insulation: Alumina ceramic
Flange: 304 Stainless steel
Magnetic materials: Yes
Voltage Rating: 8 kV DC
Current Rating: 1000 Amps
Temperature Range: -269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC: 250 PSIG (17 Bar), ISO KF 0 PSIG
Leak Rate: <1x10-10 atm-cc/sec (He)
PDF Downloads
Data sheet

17110-01-W FEEDTHROUGH One Pin .250 (6.4) dia. (WELD) magnetic Weld 8kV 1000 Tellurium Copper Yes
0 in stock
$1,069.20
Enquire
17111-01-KF FEEDTHROUGH One Pin .250 (6.4) dia. (NW40KF) magnetic NW40KF 8kV 1000 Tellurium Copper Yes
0 in stock
$1,092.96
Enquire
17112-01-CF FEEDTHROUGH One Pin .250 (6.4) dia. (NW35CF) magnetic NW35CF 8kV 1000 Tellurium Copper Yes
0 in stock
$1,139.16
Enquire
